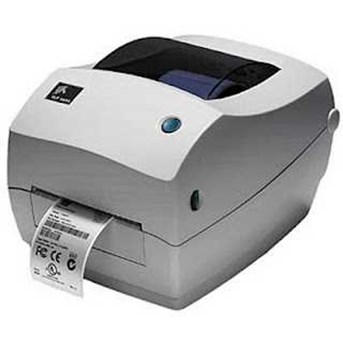

Printer Zebra TLP2844

Thermal transfer TLP 2844 bar code label printer ideal untuk aplikasi yang memerlukan hemat-ruang, desktop-size, 4, 09 “ ( 104 mm) printer. Ini printer yang user-friendly memberikan kinerja yang optimal di hari ini on-demand label aplikasi desktop. TLP 2844 memiliki konstruksi yang kokoh dengan berdinding ganda ABS casing. TLP 2844 yang terintegrasi dengan mudah ke berbagai aplikasi pencetakan, termasuk pengiriman dan penerimaan, pelabelan dan rak gudang inventory control, rumah sakit, kesehatan, dan laboratorium medis, transportasi dan logistik, dan e-commerce postage. Serial, paralel, dan USB interface membuat ini fleksibel, dapat diandalkan, dan terjangkau printer investasi yang cerdas. Printer Specification Resolution 203 dpi ( 8 dots/ mm) Memory Standard: 8 MB SDRAM ( 4 MB available to user) ; 4 MB Flash ( 2 MB available to user) Print width 4.093 ( 104 mm) maximum Print length 393 ( 991 mm) Print speed 43 ( 102 mm) / sec Media sensors Transmissive Reflective Media Characteristics Maximum label and liner width 4.253 ( 108 mm) 2.83 ( 71 mm) with Media Adapter Guides Minimum label and liner width 1.003 ( 25.4 mm) 0.5853 ( 15 mm) with Media Adapter Guides Maximum label and liner length 393 ( 991 mm) Maximum label and liner length ( optional) N/ A – no SRAM memory option Maximum roll diameter 53 ( 127 mm) Core diameter 1.03 ( 25.4 mm) and 1.53 ( 38 mm) Media thickness 0.0033 ( .08 mm) to 0.0073 ( 0.18 mm) Media types ( black-mark optional) , black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notch, notch sensing, notched, perforated, receipt, roll-fed, tag, tag stock Ribbon Characteristics Outside diameter 1.343 ( 34 mm) Standard length 2442 ( 74 m) Ratio 1: 1 Ribbon width * Recommended to be at least as wide as media * 1.333 ( 33.8 mm) to 4.303 ( 110 mm) ID Core 0.53 ( 12.7 mm) Operating Characteristics Operating temperature TT: Operating temperature 40° F ( 5° C) to 105° F ( 41° C) Thermal transfer DT: Operating temperature 40° F ( 5° C) to 105° F ( 41° C) Direct thermal Storage temperatures -40° F ( -40° C) to 140° F ( 60° C) Operating humidity 10-90% non-condensing R.H. Storage humidity 5-95% non-condensing R.H. Electrical Auto-detectable ( PFC compliant) 100-240 VAC, 50-60 Hz Agency approvals * FCC * VCCI/ PSE * C-TICK * UL * IRAM/ S * NOM * GOST-R * CSA * CE * CCC/ SRRC Physical Characteristics Width 7.93 ( 201 mm) Height 6.83 ( 173 mm) Depth 9.753 ( 248 mm) Weight 3.2 lbs ( 1.5 kg) Shipping weight 6 lbs ( 2.72 kg)
